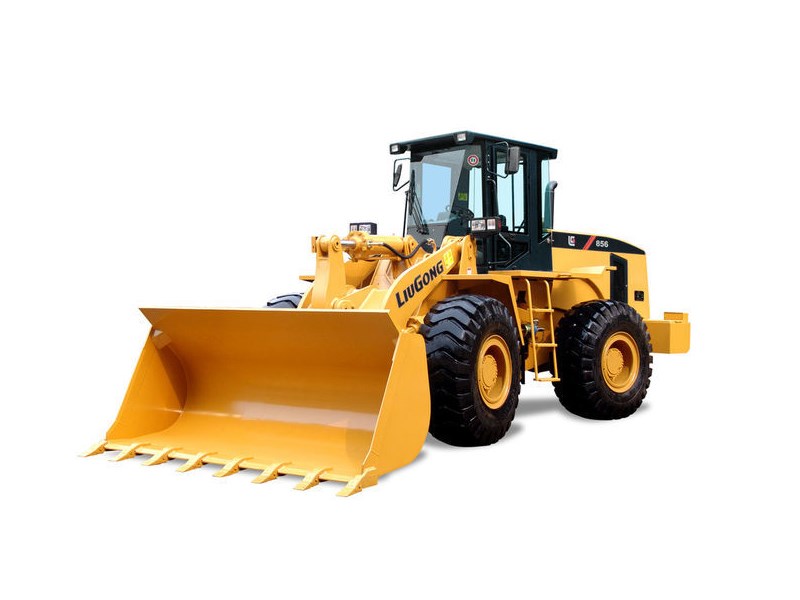

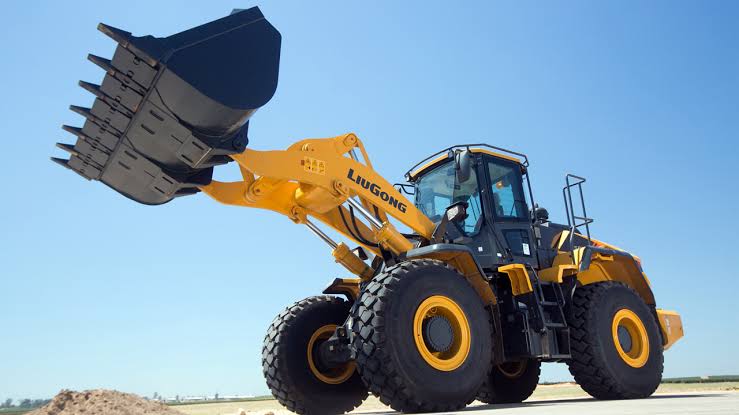

The LiuGong 856 (and its popular updated variant, the 856H) is a heavy-duty, 5-ton payload wheel loader built for construction, quarrying, and material handling. Below are the key technical specifications across performance, engine, and dimensions:Technical SpecificationsParameterSpecificationRated Load (Payload)5,000 kg (5 Tons)Operating Weight17,100 kg – 18,000 kg (varies by attachments)Standard Bucket Capacity3.0 m³ (Options: 2.6 m³ to 5.0 m³)Bucket Breakout Force158 kN – 175 kNFull-Turn Tipping Load~11,750 kgTotal Hydraulic Cycle Time~10.0 secondsEngine & PowertrainComponentSpecificationEngine ModelCummins QSL9.3 / DCEC 6LT9.3 (Turbocharged)Engine Output164 kW (220 HP) @ 2,200 RPMPeak Torque~950 Nm @ 1,400 RPMTransmissionZF / Powershift Countershaft (4 Forward / 3 Reverse)Max Travel Speed37 – 38 km/hAxlesZF / Heavy-Duty Limited-Slip AxlesWorking Dimensions & ClearanceDimensionSpecificationOverall Length (Bucket Down)~8,150 mm – 8,357 mmWidth Over Tires2,750 mmDump Clearance (at full height)3,100 mmDump Reach (at full height)1,035 mm – 1,126 mmMax. Hinge Pin Height4,150 mmWheelbase3,250 mmTurning Radius (Outside Tire)6,205 mm – 6,232 mm
